Revo - RV511M600200 - Revo RV511M600200
Revo

Revo RV511M600200 | 2.0T EA888 GEN2 AIR INTAKE SYSTEM V2

$415.00 In Stock Sold out
SKU: RV511M600200
Categories: All, Revo, Under $500
  • Description
  • Reviews





REVO OPEN CONE AIR INTAKE SYSTEM


2.0TSI MK6 PLATFORM EA888 GEN2


The Revo open cone Air Intake System for the 2.0 TSI EA888 Gen2 engine improves performance and offers an aggressive intake sound. Ensuring your engine can get access to enough air is paramount when increasing power; more air means more power throughout the rev-range.

Only Revo Air Intake Systems are specifically designed to work in harmony with your vehicle and Revo ECU Software. Engineered to directly replace the stock airbox, pipework and filter, this kit comes complete with 2 front silicone hoses, aluminum pipe, heat shield, filter, turbo inlet silicone and fitting kit.



KEY FEATURES



  • Increased Performance & Air Flow Efficiency

  • Three Stage Foam Filter

  • Direct filter to turbo fitment

  • Stepped Silicone for smooth airflow

  • 22% Volume increase over the OEM pipework








OEM VS REVO


When you begin to enhance performance, the restrictive OEM intake struggles to flow enough air, robbing the engine of power. The Revo Air Intake System removes these restrictive elements promoting smoother airflow. Open Cone systems replace the OEM air box to make space for the heat shield, filter and pipework which joins directly to the turbo. Revo Flush Fit silicone hoses avoid unwanted turbulence at joins and increase the rate at which air can flow ensuring maximum performance at any level of tuning.





CROSS OVER PIPE


The Revo engineering team knew that to create the most effective kit, every component had to be considered to maximize and smooth airspeed. The system is designed with an aluminum cross over pipe to help with the rigidity of the whole system. The direct routing and increased diameter pipe offer superior flow and deliver more air to the turbocharger.








SILICONE HOSES


The plastic hoses on the stock system are designed with a corrugated style to flex with the engine movement, while this has its place it also causes a large amount of turbulence as the airflow doesn’t have a smooth direct path to the turbo. We designed the silicone hoses with stepped internals to ensure a flush fit and to minimize turbulence while still allowing for engine movement. The turbo inlet hose has an increased inner diameter that gradually tapers from the hard pipe to turbo to optimize airflow.

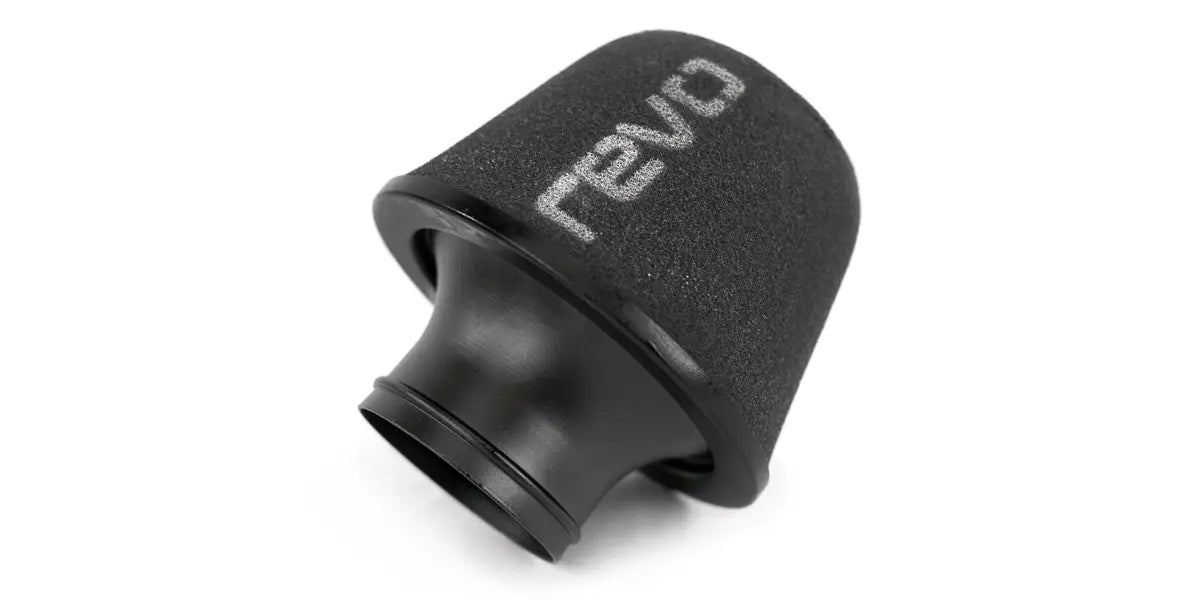

AIR FILTER


An intake system is only as good as the filter. This kit comes complete with a custom Revo foam filter, supported by galvanized epoxy-coated mesh for strength under load. Revo three-stage foam filters work very differently from conventional paper or cotton-gauze alternatives designed to trap particles on the outer layer. Revo filters trap debris and particles within the foam layers, allowing air to still navigate through. The spun base of the filter offers a smooth radius aluminum bell mouth, specifically designed for optimum airflow from the filter to pipe-work.








HEATSHIELD


Ensuring the engine has access to cold air is vital for performance. The Revo heat shield channels cold air from the front intake duct while partitioning the filter from the heat of the engine bay. The Revo Heatshield uses the stock mounting points to provide an easy and secure installation.





FITMENT


The Revo Mk6 2.0TSI Open Cone Intake was designed with a carefully placed take-off to allow the OEM PCV vacuum hose to connect to the system in an almost identical location/orientation as the OEM intake system. Whilst increasing the overall volume of the pipework, the Revo kit still utilizes the OEM MAF housing and sensor to ensure proper airflow volume measurements and engine functionality.







RESEARCH AND DEVELOPMENT




All Revo products are designed in-house and are rigorously tested utilizing an in-house 3D printer & scanners, the latest CAD and CFD programs, hub dyno and Revo data acquisition software. The Revo intake allows the turbo to run more efficiently, intake a larger volume of air and minimize turbulence to increase both power and torque, as highlighted during controlled dyno testing.

The Revo EA888 Gen2 open cone air intake system was tested in-house to compare the performance against that of the OEM intake. First tested on a vehicle running the OEM intake with Revo Stage 1 software, and no other modifications, the Revo intake was then installed and tested in the same controlled environment to highlight the benefits of enhanced airflow.




PERFORMANCE DATA


The results show improvement throughout the whole rev range, but especially towards the top end of the rev range. The Revo intake offers an average gain of +4WHP, and +6NM torque over the stock part. Increased airflow also delivers impressive peak performance gains of +10WHP @5900-6300rpm and +12NM @5900-6000RPM over the stock intake system.









FITMENT




VEHICLE APPLICATIONS












































Manufacturer Model Engine Year
Audi A3 (8P) 2.0 TSI (EA888 Gen2) 2008 - 2012
Seat Leon (1P) 2.0 TSI (EA888 Gen2) 2008 - 2012
VW Golf (Mk6) 2.0 TSI (EA888 Gen2) 2008 - 2013
VW Beetle 2.0 TSI (EA888 Gen2) 2008 - 2016
VW Scirocco 2.0 TSI (EA888 Gen2) 2009 - 2011









NOTES



  • Simple replacement of the OEM part
